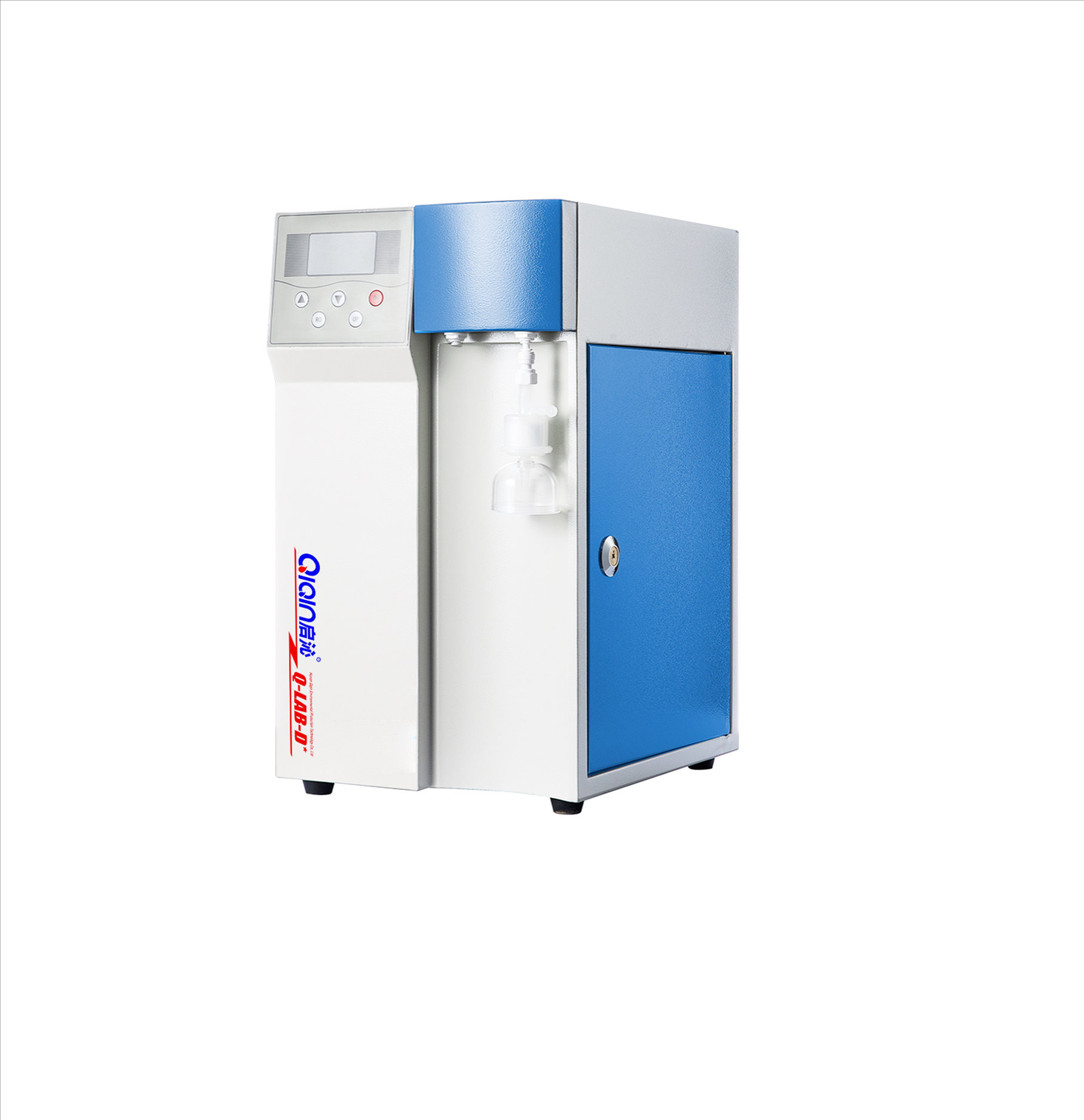

Lab Ultrapure Water System Q-MID

Name: Lab Ultrapure Water System Q-MID
Brand: Hunan Qiqin Environmental Technology Co., Ltd. – Provider of integrated ultrapure water solutions – Manufacturer of laboratory and medical water treatment equipment
Availability: InStock
Rating: 5 (100 reviews)

Lab Water Purification

Product price:

Suggested price based on market fluctuations

The water produced by the Q-MID series pure water machine fully complies with the type 1 water quality standards of GB6682-2008, ASTM, CAP, CLSI, EP, and USP.

Consultation Hotline：+86 18874711558

Inquiry

Demonstration

Product advantages

3.2-inch high-definition screen, real-time display water quality and operation status
Display RO water quality, UP water quality, and liquid level
Remind and set the consumable lifespan, displaying the remaining time of the consumables
Sterile water tank with independent patent, hygienic grade and integrally formed
The system has dual pumps that operate automatically and circulate regularly to ensure stable water quality
Optional capacitive screen, WIFI module, water tank, which are suitable for multiple scenarios

Specific parameters

Floor area
≤ 2 square meters
Capacity
10-60 L/h
Water treatment capacity
10-60 L/h
Host size
515mm x 350mm x 940mm
Land occupation space
≤ 2 square meters
Power supply
AC 220V，50Hz， Power 50W-200W

Name	Lab Ultrapure Water System Q-MID
Model	Q-MID-DI	Q-MID-DV
Water production capacity	10 / 20 / 40 / 60 L/h
Operating condition	Feed water: municipal potable water, TDS<200ppm, water pressure 0.10-0.40MPa, water temperature 5-45 ℃, TOC＜100ppb, Environment: ventilation, anti-moisture, anti-corrosion
RO water quality	RO water conductivity ≤ feed water conductivity × 2% (online monitoring)
UP ultrapure water quality	Resistivity 18.25 MΩ. cm (25 ℃) (online monitoring) Microparticles (≥0.22μm) ≤ 1/ml Heavy metal ions ≤ 0.1 ppb Microorganisms ≤ 1 cfu/ml TOC ≤ 10 ppb	Resistivity 18.25 MΩ. cm (25 ℃) (online monitoring) Microorganisms ≤ 0.01 cfu/ml Heavy metal ions ≤ 0.1 ppb TOC ≤ 5 ppb Pyrogen ≤ 0.001 EU/ml
Ultraviolet	N /A	185 /254NM
Typical application	Atomic absorption (AAS), Atomic emission (AES), Ion chromatography (IC), Mass spectrometry (MC), Gas phase/liquid chromatography (HPLC), Electrochemical interface studies, In vitro fertilization	IVF, PCR, ICP-MS, HPLC, Animal and plant cell culture, electrochemical interface research, animal and plant cell culture, gene research.
Dimension ( L x W x H )	10-20 L/h: 405mm x 305mm x 550mm 40-60 L/h: 515mm x 350mm x 940mm
Electricity power	AC 220V，50Hz， Power 50W-200W

Product Details

The water produced by the Q-MID series pure water machine fully complies with the type 1 water quality standards of GB6682-2008, ASTM, CAP, CLSI, EP, and USP.

Product FAQ

Is the equipment occupying a large area? Our laboratory space is very tight, will there be any difficulties in installation?
＋－

The equipment adopts an integrated design, with a compact overall structure and ultra small footprint, making it easy to place in corners or equipment rooms of the inspection department. Taking Q-Center-RED as an example, the design integrates all preprocessing, purification units, and control systems, maximizing your valuable space savings.
Is this system complex to operate? Can ordinary workers quickly master it?
＋－

The system adopts fully automatic control, PLC combined with touch screen human-machine interface, dynamic display of process flow, one click start stop, without manual intervention. Daily operation only requires observing the operating parameters on the screen, making the operation extremely convenient. All key parameters have permission protection to prevent misoperation. We will also provide training to ensure that your team can proficiently use it.
